Gasoline and diesel generating sets

Generators

Portable and frame-type generating sets for standby power and site use. The gasoline range covers light domestic and event duty; the diesel range runs to 9.5 kW for continuous commercial and industrial work.

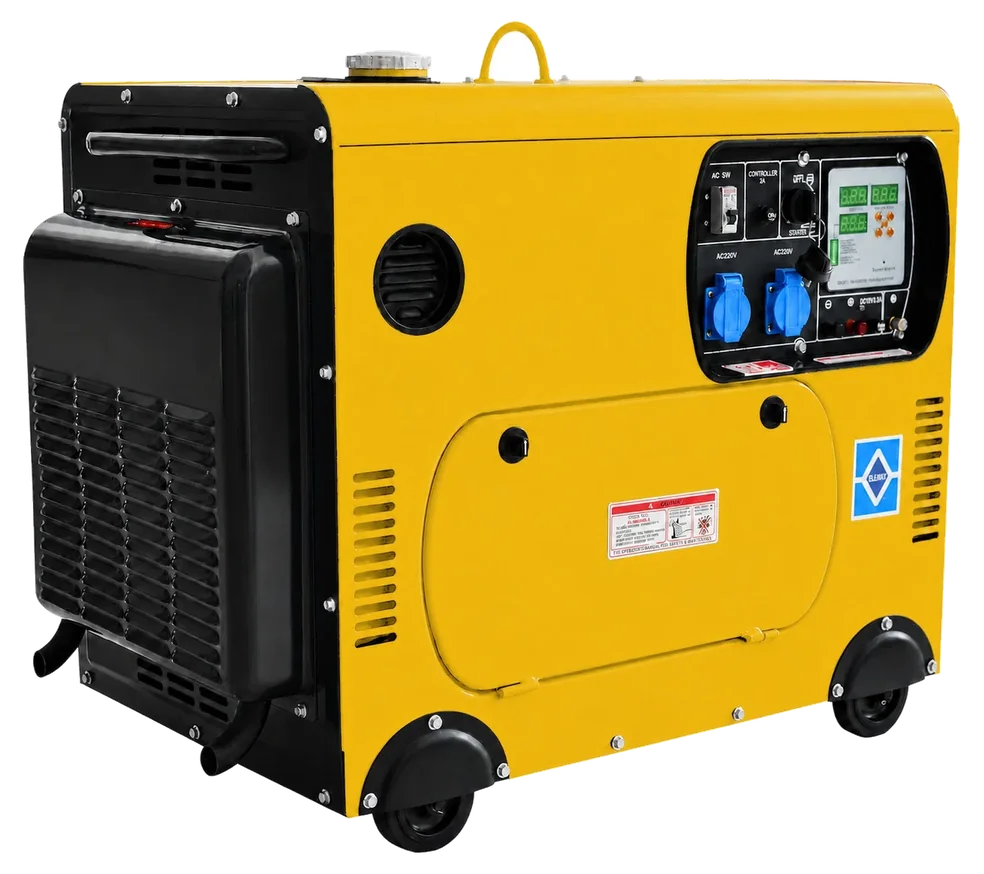

Fujiheng diesel generator set.

Models in this range

8 models in 2 series. Open any model for the figures our catalogue prints for it, and to start a quotation.

Gasoline generating sets
3 models
Gasoline

FSH1500

Rated AC output (kVA)
0.8/1.0
Engine model
FSH154
Net weight (KG)
26
Full specification
Gasoline

FSH2500

Rated AC output (kVA)
2.0/2.2
Engine model
FSH200
Net weight (KG)
42
Full specification
Gasoline

FSH3500

Rated AC output (kVA)
2.5/3.0
Engine model
FSH210
Net weight (KG)
51
Full specification
Diesel generating sets
5 models
Diesel

FSH6500DS

Rated output (kW)
4.6/5.0
Engine model
FSH186FE
Net weight (KG)
165
Full specification
Diesel

FSH7500DS

Rated output (kW)
5.0/5.5
Engine model
FSH188FE
Net weight (KG)
170
Full specification
Diesel

FSH8500DS

Rated output (kW)
6.0/6.5
Engine model
FSH192FA(E)
Net weight (KG)
185
Full specification
Diesel

FSH10000DS

Rated output (kW)
7.0/7.5
Engine model
FSH195FE
Net weight (KG)
220
Full specification
Diesel

FSH11000DS

Rated output (kW)
9.0/9.5
Engine model
FSH1100FE
Net weight (KG)
240
Full specification

The largest generating set listed above is 9.5 kW. We also build diesel and gas sets up to 1,000 kW, configured to order against the load. High-power generator sets

At a glance

The points that decide a specification most often — taken from the model data below.

AVR regulated output

Automatic voltage regulation on the gasoline range for stable supply.

12V DC output

Battery charging output on the diesel range.

50 Hz and 60 Hz

Both frequencies available for different export markets.

72 dB(A) at 7 m

Noise level measured at seven metres on the diesel range.

Frequently asked questions

What buyers ask before specifying generators — answered from the catalogue figures on this page.

What output range do the generating sets cover?

The gasoline sets run from 0.8/1.0 kVA on the FSH1500 to 2.5/3.0 kVA on the FSH3500. The diesel sets run from 4.6/5.0 kW on the FSH6500DS to 9.0/9.5 kW on the FSH11000DS.

Are both 50 Hz and 60 Hz available?

Yes. Both frequencies are offered across the range for different export markets, with rated voltages of 110/120/220/230/240 V and 220/380 V.

How noisy are the diesel sets?

72 dB(A) measured at seven metres, which is the figure printed for every model in the diesel range.

Is there a 12V battery charging output?

Yes. The diesel range carries a 12V-8.3A DC output for battery charging.

Do the gasoline sets have voltage regulation?

Yes. The gasoline range is AVR regulated for a stable supply, with brush single/three-phase alternators.

Compare all models

Transcribed from our printed catalogue. Scroll the table sideways to see every model.

Gasoline generator set
FSH1500FSH2500FSH3500
TypeBrush single/three phaseBrush single/three phaseBrush single/three phase
Voltage regulateAVRAVRAVR
Frequency (Hz)50/6050/6050/60
Rated AC voltage (V)110/120/220/230/240, 220/380110/120/220/230/240, 220/380110/120/220/230/240, 220/380
Rated AC output (kVA)0.8/1.02.0/2.22.5/3.0
Max AC output (kVA)1.0/1.22.2/2.52.8/3.5
Power factor111
Engine modelFSH154FSH200FSH210
Engine typeOHV 4-stroke forced air-cooledOHV 4-stroke forced air-cooledOHV 4-stroke forced air-cooled
Fuel tank capacity (L)151515
Ignition systemT.C.IT.C.IT.C.I
Starting systemRecoil / electric startRecoil / electric startRecoil / electric start
Packing size (L*W*H) mm465*365*390610*535*470610*535*470
Net weight (KG)264251
20/40 FT unit470/960225/475225/475
Diesel generator set
FSH6500DSFSH7500DSFSH8500DSFSH10000DSFSH11000DS
Frequency (Hz)50/6050/6050/6050/6050/60
Rated voltage (V)110/120/220/230/240, 220/380110/120/220/230/240, 220/380110/120/220/230/240, 220/380110/120/220/230/240, 220/380110/120/220/230/240, 220/380
DC output12V-8.3A12V-8.3A12V-8.3A12V-8.3A12V-8.3A
Rated output (kW)4.6/5.05.0/5.56.0/6.57.0/7.59.0/9.5
Max output (kW)5.0/5.55.5/6.06.5/7.07.5/8.510.0/10.5
Noise level at 7 m dB(A)7272727272
Engine modelFSH186FEFSH188FEFSH192FA(E)FSH195FEFSH1100FE
Engine typeSingle cylinder, vertical, 4-stroke, air-cooledSingle cylinder, vertical, 4-stroke, air-cooledSingle cylinder, vertical, 4-stroke, air-cooledSingle cylinder, vertical, 4-stroke, air-cooledSingle cylinder, vertical, 4-stroke, air-cooled
Bore x stroke (mm)88*7588*7592*7595*82100*88
Displacement (L)0.4560.4560.4980.6180.71
Packing size (L*W*H) mm915*545*715915*545*715915*545*715915*545*7151110*735*760
20 FT unit7272726666
Net weight (KG)165170185220240
Also available
  • Open-frame and trolley configurations
  • Model FSH6500DW
