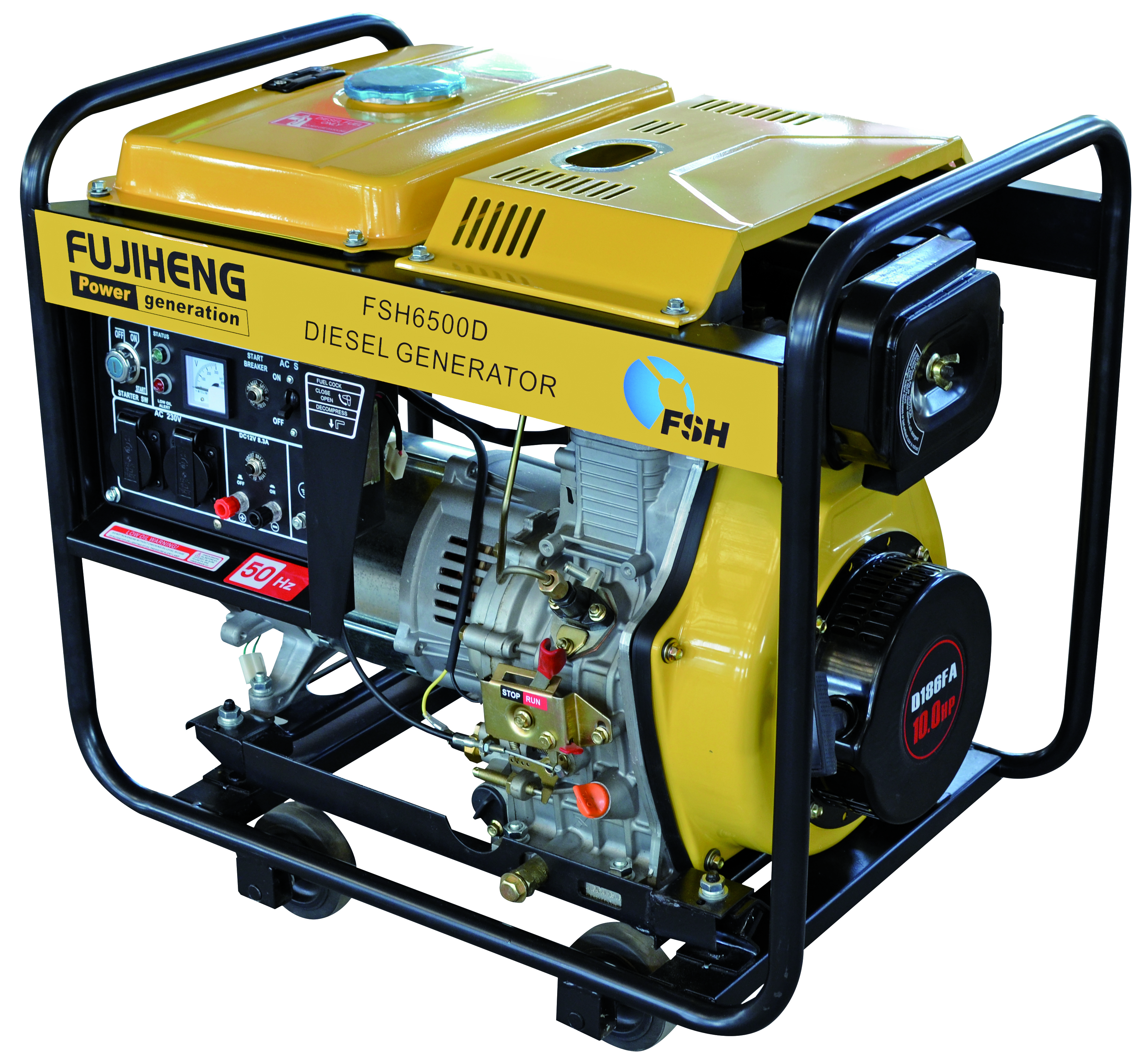

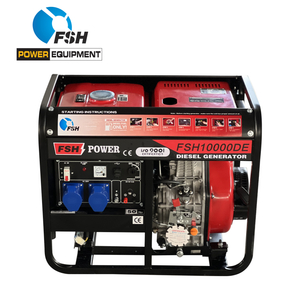

FSH6500DE
FSH
| Model | FSH4000D/E | FSH6500D/E | FSH7500D/E | FSH8500D/E | FSH10000D/E |
| Frequency(HZ) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated voltage(V) | 110,120,220,230,240 220/380 | ||||
| Rated output KW | 2.8/3.0 | 4.6/5.0 | 5.5/6.0 | 6.0/6.5 | 7.0/7.5 |
| Max output KW | 3.0/3.3 | 5.0/5.5 | 6.0/6.5 | 6.5/7.0 | 7.5/8.0 |
| DC output | 12V-8.3A | 12V-8.3A | 12V-8.3A | 12V-8.3A | 12V-8.3A |
| Power factor | 1.0/0.8(Three phase) | ||||
| Noise level(7m)db(A) | 77 | 77 | 79 | 79 | 80 |
| Engine model | FSH178F/E | FSH186FA/E | FSH188FA/E | FSH192F/E | FSH198F/E |
| Type | single cylinder,vertical,4-stroke,air-cooled | ||||
| Fule tank capacity(L) | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 |
| starting system | Recoil starter/Electric start | ||||
| Packing size(L*W*H)mm | 650*490*570 | 740*500*600 | 740*520*660 | 740*520*660 | 740*520*660 |
| 20FT unit | 132 | 105 | 105 | 105 | 105 |
| Net weight(KG) | 86 | 117 | 119 | 123 | 147 |
| Model | FSH4000D/E | FSH6500D/E | FSH7500D/E | FSH8500D/E | FSH10000D/E |
| Frequency(HZ) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated voltage(V) | 110,120,220,230,240 220/380 | ||||
| Rated output KW | 2.8/3.0 | 4.6/5.0 | 5.5/6.0 | 6.0/6.5 | 7.0/7.5 |
| Max output KW | 3.0/3.3 | 5.0/5.5 | 6.0/6.5 | 6.5/7.0 | 7.5/8.0 |
| DC output | 12V-8.3A | 12V-8.3A | 12V-8.3A | 12V-8.3A | 12V-8.3A |
| Power factor | 1.0/0.8(Three phase) | ||||
| Noise level(7m)db(A) | 77 | 77 | 79 | 79 | 80 |
| Engine model | FSH178F/E | FSH186FA/E | FSH188FA/E | FSH192F/E | FSH198F/E |
| Type | single cylinder,vertical,4-stroke,air-cooled | ||||
| Fule tank capacity(L) | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 |
| starting system | Recoil starter/Electric start | ||||
| Packing size(L*W*H)mm | 650*490*570 | 740*500*600 | 740*520*660 | 740*520*660 | 740*520*660 |
| 20FT unit | 132 | 105 | 105 | 105 | 105 |
| Net weight(KG) | 86 | 117 | 119 | 123 | 147 |
