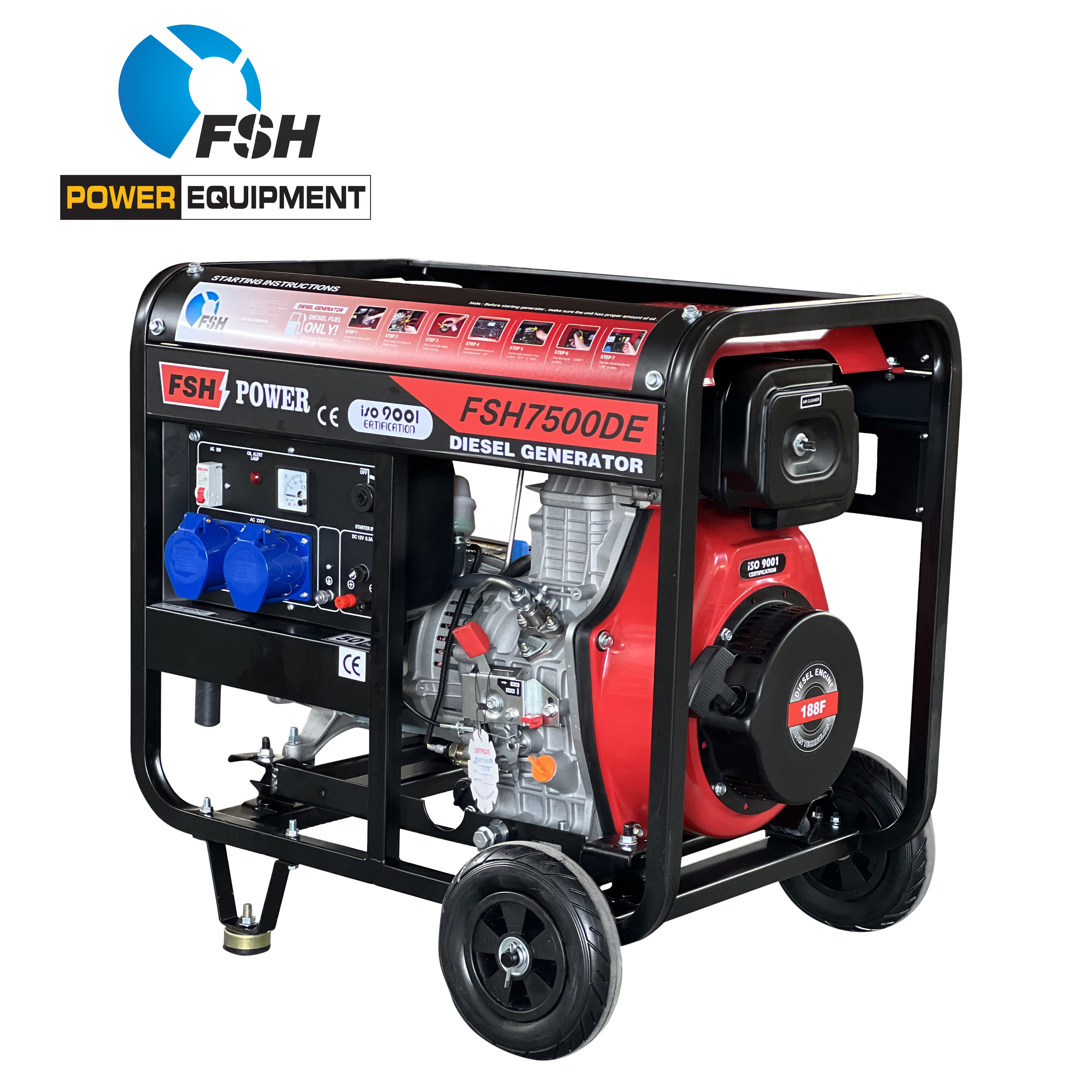

KDE7500E
KAMA
| Model | FSH2000D | FSH3500D | FSH6500D | FSH7500D | FSH8500D |
| Frequency(HZ) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated voltage(V) | 110,120,220,230,240 220/380 | ||||
| DC output | 12V-8.3A | 12V-8.3A | 12V-8.3A | 12V-8.3A | 12V-8.3A |
| Power factor | 1.0/0.8(Three phase) | ||||
| Noise level(7m)db(A) | 77 | 77 | 77 | 77 | 77 |
| Engine model | FSH170F(E) | FSH178F(E) | FSH186FA(E) | FSH188F(E) | FSH192F(E) |
| Type | single cylinder,vertical,4-stroke,air-cooled | ||||
| Bore*stroke(mm) | 70*55 | 78*62 | 86*72 | 88*75 | 92*75 |
| Displacment(L) | 0.211 | 0.296 | 0.418 | 0.456 | 0.498 |
| Combstion system | Direct Injection | ||||
| Rated output KW | 1.8/2.0 | 2.8/3.0 | 4.6/5.0 | 5.0/5.5 | 6.0/6.5 |
| Max. output KW | 2.0/2.2 | 3.0/3.3 | 5.0/5.5 | 5.5/6.0 | 6.5/7.0 |
| Direction of rotation | Countercolockwise,facing PTO shaft | ||||
| Fule tank capacity(L) | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 |
| Continuous running time(h) | 14/12 | 9/8 | 6.0/5.0 | 5.0/4.0 | 4.0/3.5 |
| Lubricating system | Pressure splashed | ||||
| starting system | Recoil starter/Electric start | ||||
| Fuel type | 0#(summer)-10#(winter)-35#(chiness)diesel | ||||
| Lube oil type | CD grade or SAE10W-30,15W-40 | ||||
| Battery AH | 12V/17AH—36AH | ||||
| Packing size(L*W*H)mm | 650*490*570 | 650*490*570 | 730*495*620 | 730*495*620 | |
| 20FT unit | 132 | 132 | 96 | 96 | 96 |
| Net weight(KG) | 58 | 74 | 95 | 102 | 105 |
