Gasoline Engine

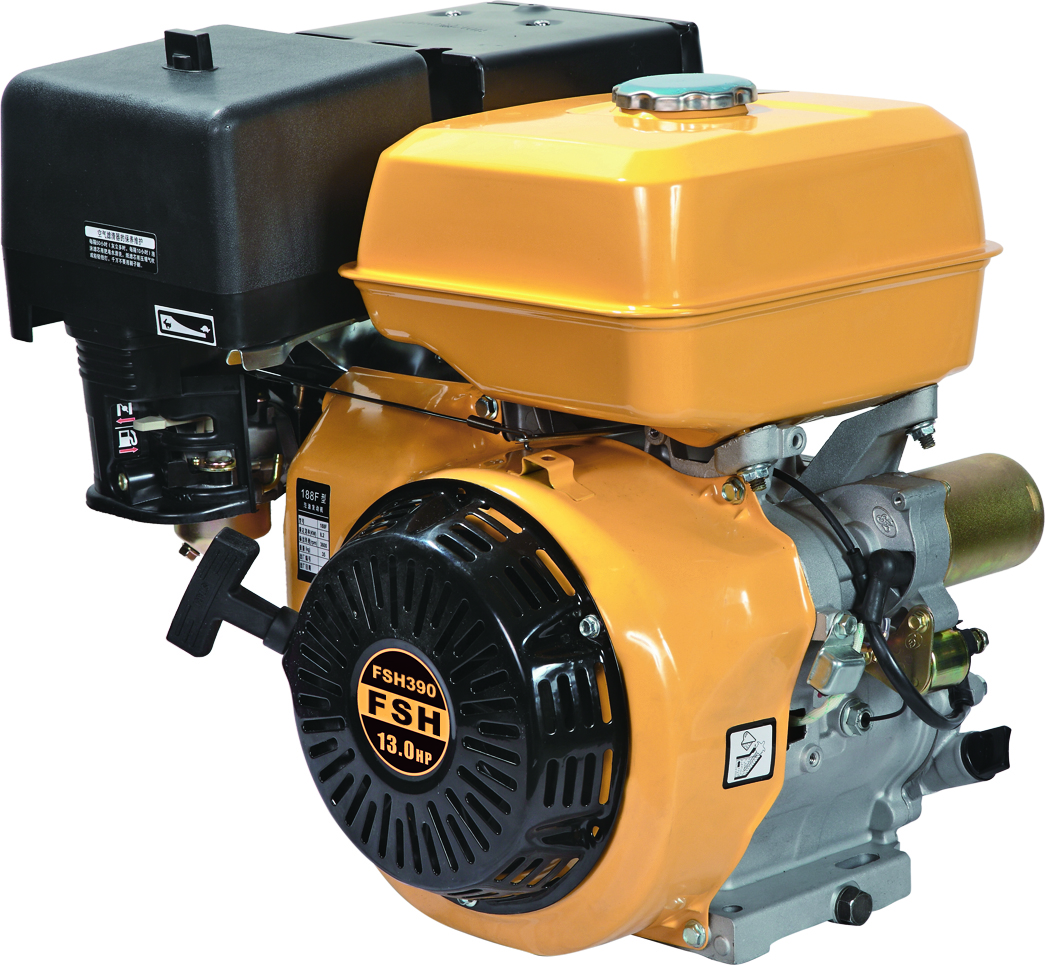

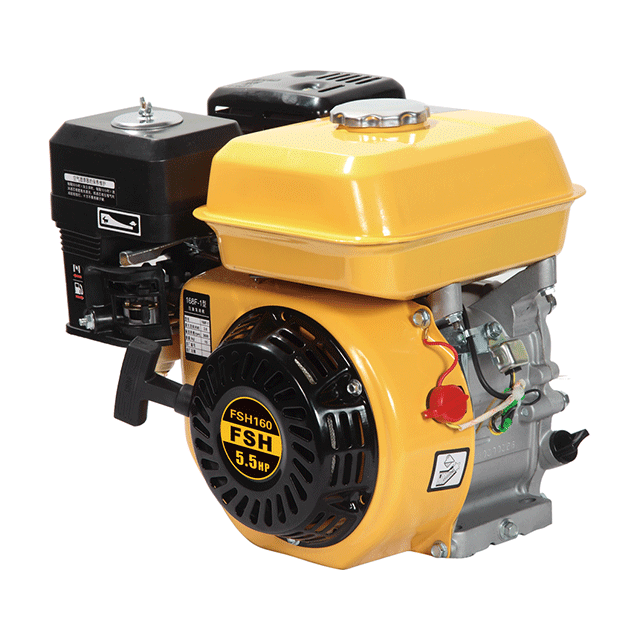

Gasoline Engine 6.5hp 13.0hp

Gasoline engine
Model	FSH160	FSH200	FSH210	FSH270	FSH390	FSH420	FSH440
Engine Type	(Air-cooled; 4-stroke; OHV; single cylinder)
Bore x Stroke(mm)	68x45	68x54	70x54)	77*58	88*64	90*66	92*66
Displacement	163cc	196cc	212cc	270cc	389cc	420cc	436cc
Max.torque N.m/rpm	9/2500	11/2500	12/2500	15.8/2500	22.5/2500	24.5/2500	27/2500
Rated Power Output	(5.5HP)3.1kw	(6.5HP)3.8kw	(7.0HP)4.2kw	9HP/5.4KW	13HP/7.6KW	15HP/8.5KW	16HP/8.8KW
ignition System	TCI
Starting System	Recoil / Eletric start
ENGINE Oil System Capacity	0.6 Liters			1.1Liters
Fuel Capacity	3.6 Liters			6.0L
Fuel Rate Consumption	≤395g /kw/h			≤374/kw.h	≤374/kw.h	≤374/kw.h	≤374/kw.h
Dimensions(LxWxH)	385330350mm			455420475mm	510420475mm	510420475mm	510420475mm
Net weight	17kg			27kg	33kg	33kg	34kg
