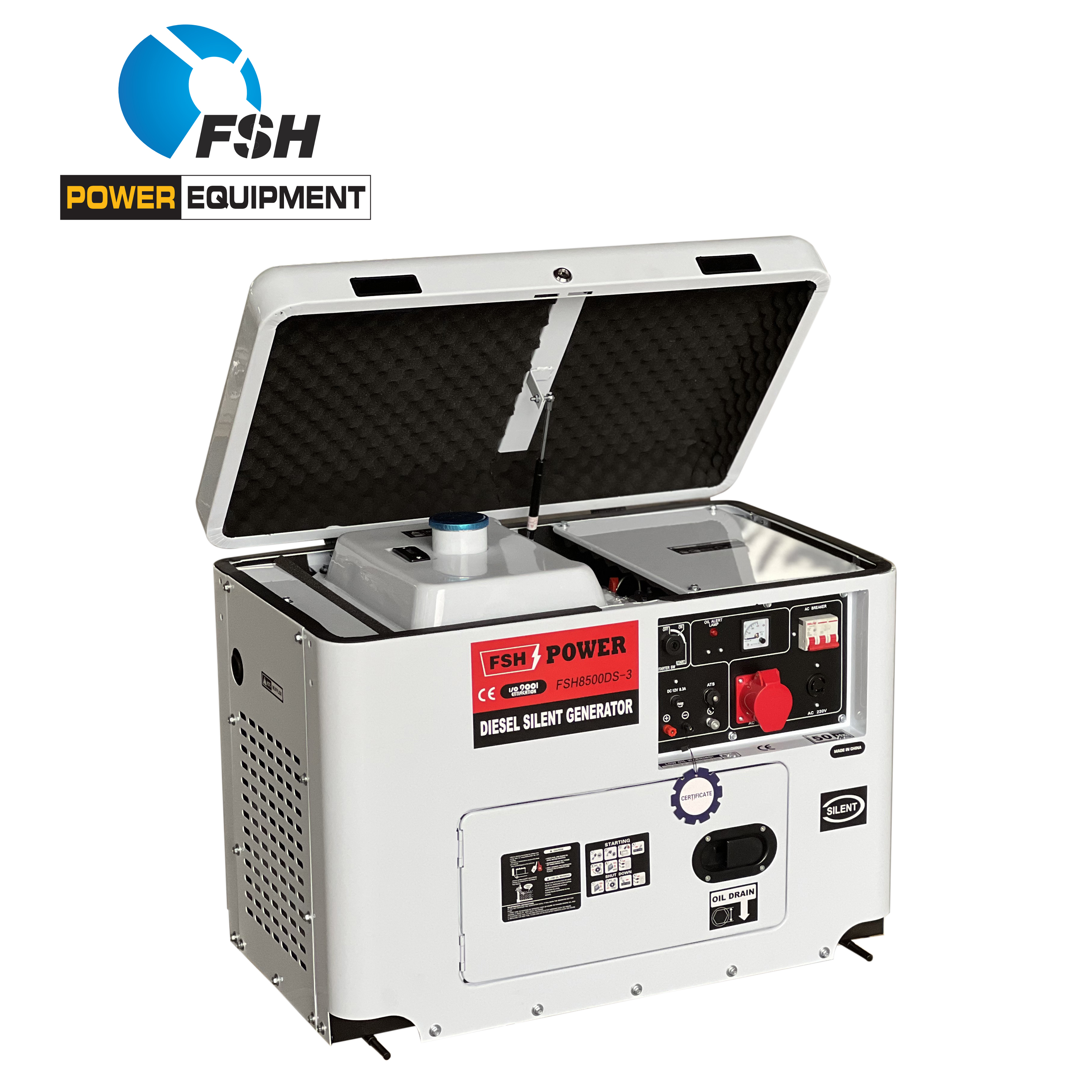

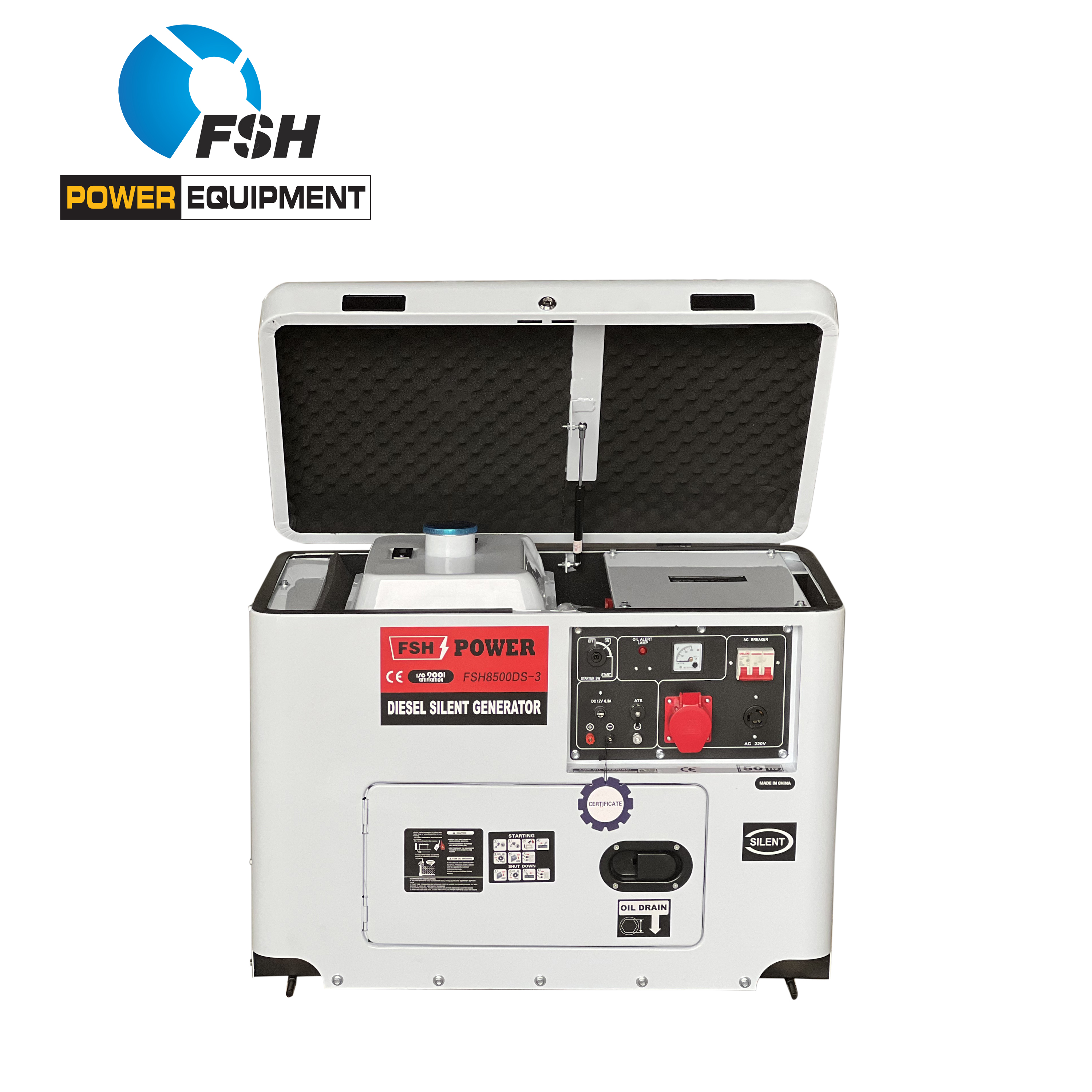

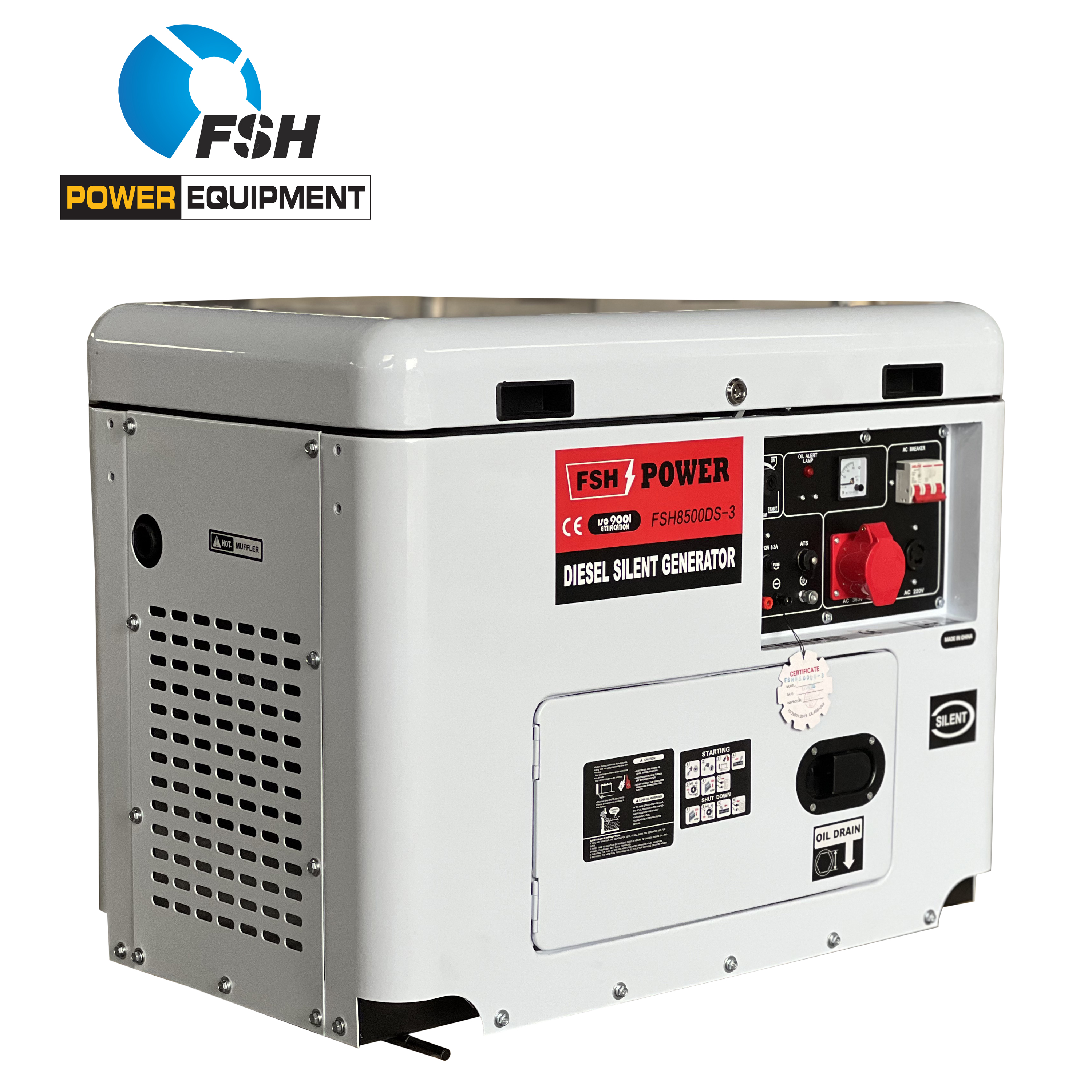

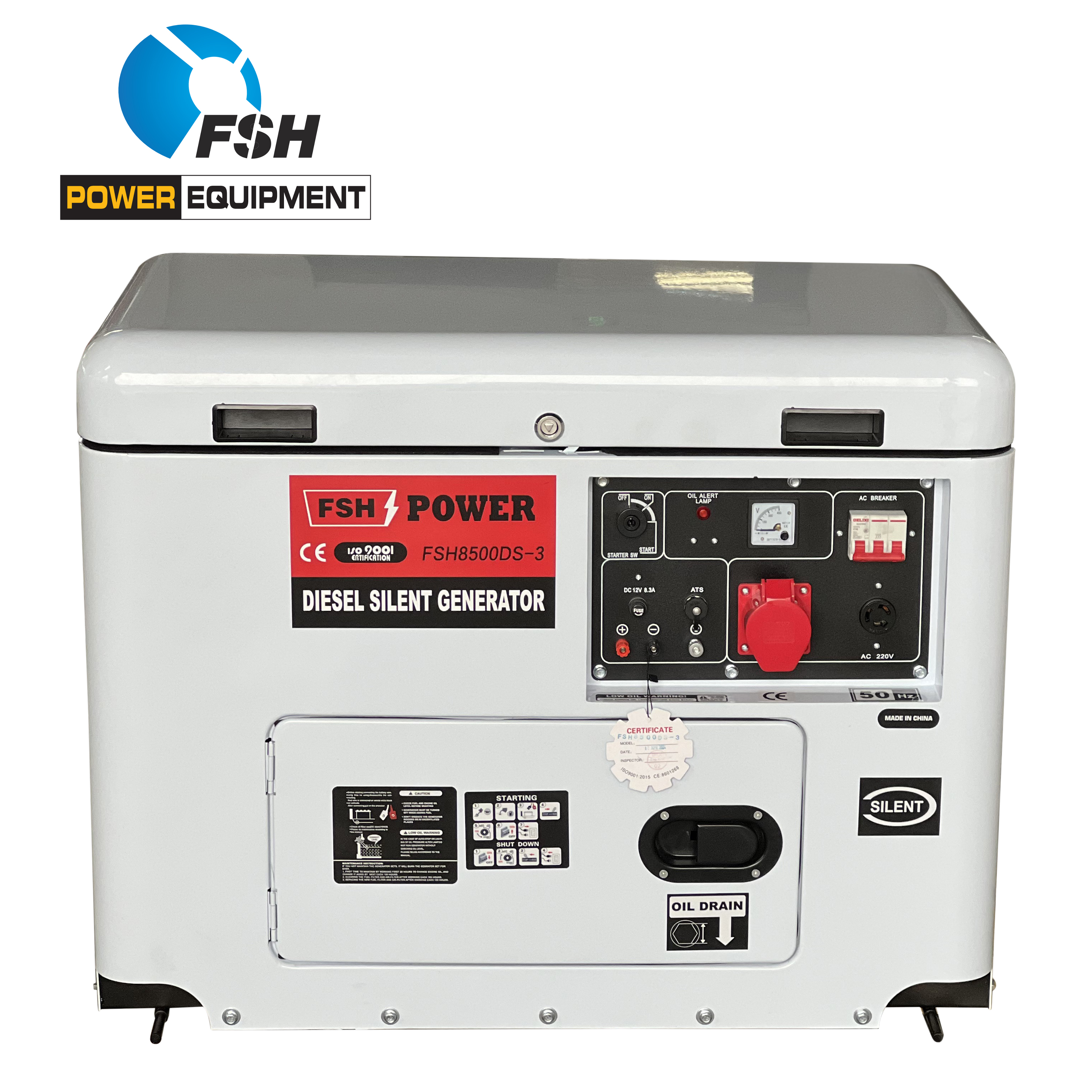

FSH8500DS
FSH
 | |||||
| Silent Diesel generator set | |||||
| Model | FSH3500DS | FSH6500DS | FSH7500DS | FSH8500DS | FSH9500DS |
| Frequency(HZ) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated voltage(V) | 110,120,220,230,240 220/380 | ||||
| DC output | 12V-8.3A | 12V-8.3A | 12V-8.3A | 12V-8.3A | 12V-8.3A |
| Rated output KW | 2.8/3.0 | 4.6/5.0 | 5.0/5.5 | 6.0/6.5 | 7.0/8.0 |
| Max. output KW | 3.0/3.3 | 5.0/5.5 | 5.5/6.0 | 6.5/7.0 | 7.5/8.5 |
| Power factor | 12V-8.3A | ||||
| Noise level(7m)db(A) | 72 | 72 | 72 | 72 | 72 |
| Engine model | FSH178FE | FSH186FE | FSH188FE | FSH192FA(E) | FSH198FE |
| Type | single cylinder,vertical,4-stroke,air-cooled | ||||
| Bore*stroke(mm) | 78*62 | 88*75 | 88*75 | 92*75 | 98*82 |
| Displacment(L) | 0.296 | 0.456 | 0.456 | 0.498 | 0.618 |
| Packing size(L*W*H)mm | 915*545*715 | 915*545*715 | 915*545*715 | 915*545*715 | |
| 20FT unit | 72 | 72 | 72 | 72 | 72 |
| Net weight(KG) | 140 | 165 | 170 | 185 | 220 |
| |||||
| Silent Diesel generator set | |||||
| Model | FSH3500DS | FSH6500DS | FSH7500DS | FSH8500DS | FSH9500DS |
| Frequency(HZ) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated voltage(V) | 110,120,220,230,240 220/380 | ||||
| DC output | 12V-8.3A | 12V-8.3A | 12V-8.3A | 12V-8.3A | 12V-8.3A |
| Rated output KW | 2.8/3.0 | 4.6/5.0 | 5.0/5.5 | 6.0/6.5 | 7.0/8.0 |
| Max. output KW | 3.0/3.3 | 5.0/5.5 | 5.5/6.0 | 6.5/7.0 | 7.5/8.5 |
| Power factor | 12V-8.3A | ||||
| Noise level(7m)db(A) | 72 | 72 | 72 | 72 | 72 |
| Engine model | FSH178FE | FSH186FE | FSH188FE | FSH192FA(E) | FSH198FE |
| Type | single cylinder,vertical,4-stroke,air-cooled | ||||
| Bore*stroke(mm) | 78*62 | 88*75 | 88*75 | 92*75 | 98*82 |
| Displacment(L) | 0.296 | 0.456 | 0.456 | 0.498 | 0.618 |
| Packing size(L*W*H)mm | 915*545*715 | 915*545*715 | 915*545*715 | 915*545*715 | |
| 20FT unit | 72 | 72 | 72 | 72 | 72 |
| Net weight(KG) | 140 | 165 | 170 | 185 | 220 |
